Tank Head Types
- Hydroformed
- Spun
- Heat Transfer
- ASME Certified
- Pressed
- Flat Flanged
- Conical
- Elliptical
- Custom
Tank Head Materials
- Stainless Steel
- Aluminum
- Carbon
- Alloy
Polishing
28 mill finish - standard
#4 finish ID and/or OD
#4/dairy finish ID and/or OD (meets 3-A standards)
#7 finish ID and/or OD
Machining (Optional)
Edges machined square
Edges beveled and tapered to your specifications

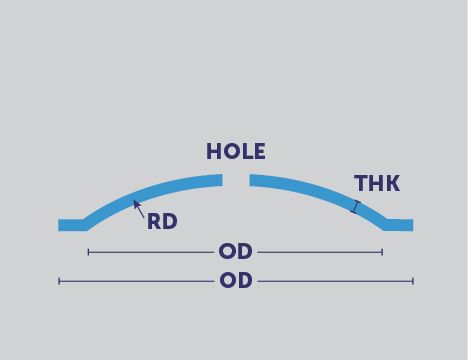

Flanged Disc and ASME Head
Diameter = 9" to 162"
Thickness = 14 gauge to 1/2' plate
Flanged Only Heads
Diameter = 14" to 180"
Thickness = 14 gauge to 1/2' plate
Dish Only Heads
Diameter = 10" to 162"
Thickness = 18 gauge to 1/2' plate
Elliptical Flanged Dish Heads
Variety of sizes available
Thickness = 12 gauge to 8 gauge
0.190" to 0.250" for aluminum
Flanged Reverse Dish Heads
Diameter = 24" to 152"
Thickness = 14 gauge to 1/4" plate
Flared Dish Heads
Diameter = 24" ID to 162" OD
Thickness = 14 gauge to 1/2" plate
Conical Heads
Diameter = 9" to 144"
Thickness = 14 gauge to 3/8" plate
