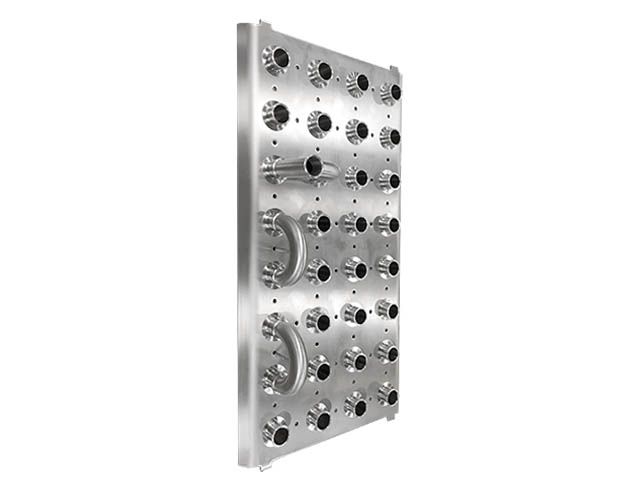

Transfer Panels & Flow Plates

Transfer panels offer clear separation between different fluid streams with no cross contamination. Our transfer panels (or flow plates) are fabricated from highly durable stainless steel and can efficiently transfer fluids through multiple lines within a processing system.

• Prevent accidentally mixing product and cleaning solution
• Prevent sending product or cleaning solution down the wrong line
• Efficient, cost-effective flow diversion method
• Easily customizable to your application

Many build options available

We can walk you through the following options to help determine which makes the most sense for your operation and application. You can choose from a wide variety of standard panel configurations or have a custom panel designed to meet your specific needs.

Plate & Ports

• Plate material: 304 or 316L stainless steel
• Port material: 304L or 316L stainless steel
• Port size: all common tube sizes in nominal increments up to 6 inches; larger sizes available upon request
• Port surface finish: 32Ra is standard unless otherwise specified
• Port tags: engraving, laser etching, electrochemical marking, adhesive labels
• Variety of connection types

Mounting

• Mounting options: floor, wall or existing equipment
• Mounting legs: 1.5 inch round pipe or 2 inch square tube
• Base plates and Koss 3-A Adjustable Leveling Feet available

Options

• 18 mm or 30 mm predrilled proximity sensor holes
• Proximity switches
• Drip pans
• Jumpers
• Gasket elastomer material: EPDM, VITON®, PTFE/Teflon®, or other
• Additional valves (butterfly, shut-off/diverter, etc.) if needed

Meet or exceed USDA sanitary standards.
